Ceiling Fans with Lights Explained
Ceiling fans with lights are ceiling-mounted fans that combine air movement and overhead lighting in one fixture. The light is either integrated into the fan or supplied by a compatible attachable light kit; add-on and replacement options depend on the specific fan’s mounting interface, connector, light source, and control design.
How a ceiling fan with light fits together
Read the fixture as three connected systems: the fan creates airflow, the lighting assembly creates room light, and the fan design determines how the light is attached and controlled.
Air movement
Main parts: motor housing and blades.
Function: the motor drives the blades to move room air.
Lighting
Two forms: an integrated light or a compatible attachable light kit.
Main parts: bulb or LED module plus a shade or diffuser.
Fit and control
Compatibility: model support, mounting, connector, clearance, and control path must align.
Controls: may include a remote, wall control, or pull chain, depending on the fan design.
Core distinction: an integrated light is part of the fan’s original lighting design; a light kit is a separate assembly that can be attached only when the fan is designed to support it. Visual similarity alone does not confirm compatibility.
A typical unit includes fan blades, a motor housing, a light source such as a replaceable bulb or LED module, a shade or diffuser, and controls such as a remote, wall control, or pull chain. These parts are not universally interchangeable, so model-specific support matters more than visual similarity.
For broader room, size, lighting, and control planning, use the ceiling fans with lights guide. This page stays focused on meaning, parts, light-kit forms, replaceability, compatibility, and control basics.
What a Ceiling Fan with Light Means
A ceiling fan with light is a ceiling fan that provides overhead lighting through either an integrated lighting assembly or a compatible attachable light kit. The fan supplies airflow; the lighting assembly supplies room light from the same ceiling-mounted fixture.

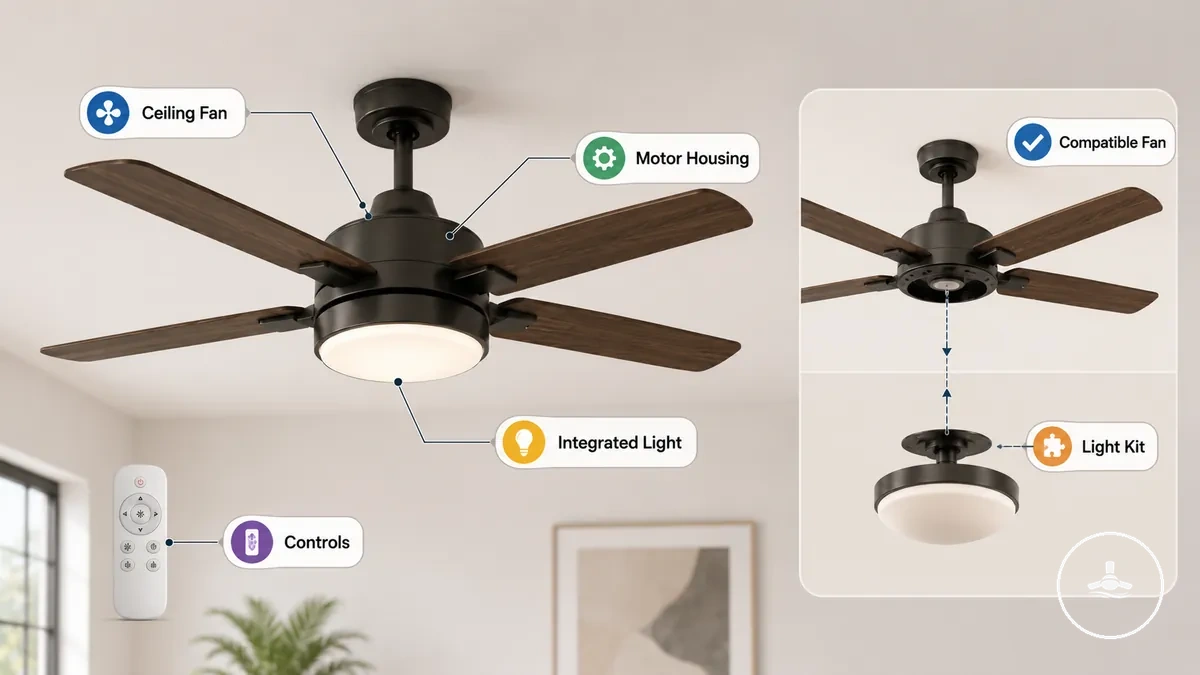

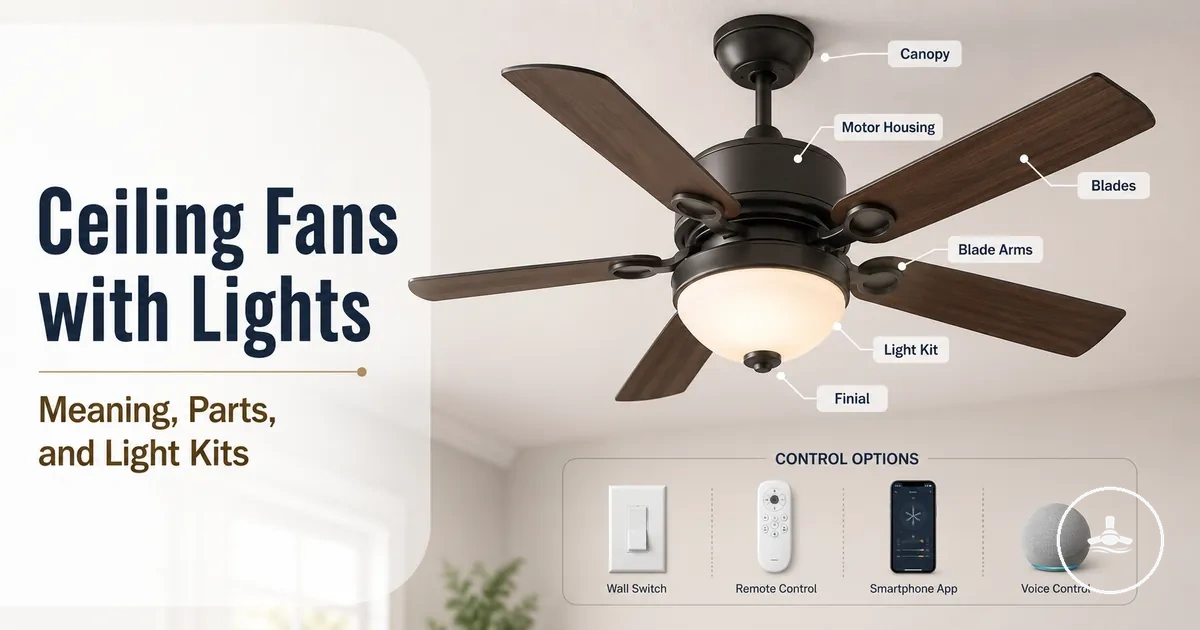

The labelled image shows the relationship between the two functions: the motor and blades form the airflow system, while the lighting assembly sits below or within the fan body to provide light.
One model may be supplied with a built-in light, while another may accept an optional light kit. In either case, the light source, shade or diffuser, controls, and serviceable parts are determined by the specific fan and lighting design, not by appearance alone.
What Ceiling Fans with Lights Include
Ceiling fans with lights usually combine a main fan assembly with a built-in or attached lighting assembly. The core parts divide into three functions: air movement, lighting, and control.

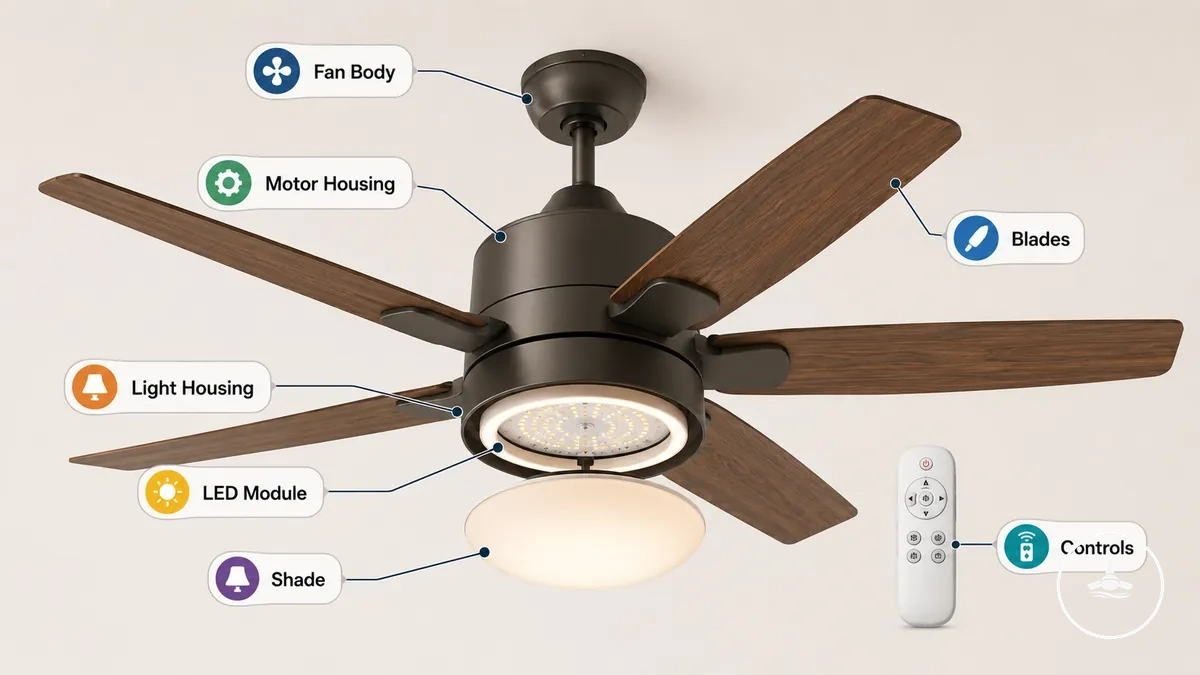

The labelled image identifies the main physical parts; the component list then connects each part to its function.
- Fan body: The central structure that carries and connects the fan’s main mechanical and lighting components.
- Blades: Move room air when driven by the motor.
- Motor housing: Encloses the motor and supports the blade-drive assembly.
- Light housing: Positions and protects the lighting assembly below or within the fan body.
- Bulb or LED module: Produces light; the design may use a replaceable bulb or a model-specific LED module.
- Shade or diffuser: Covers the light source and shapes or softens light distribution.
- Controls: Operate the fan, the light, or both through the supported remote, wall-control, switch, or pull-chain arrangement.
Exact components vary by model. A fan with replaceable bulbs, for example, has a different service path from a fan with an integrated LED module, and an optional light-kit-ready fan has different attachment requirements from a fan with a built-in light.
Fan Body, Blades, Motor Housing, and Light Housing
The fan body, blades, motor housing, and light housing form the main structural system of a ceiling fan with light. Together they support the fan, contain the drive components, create airflow, and position the lighting assembly.

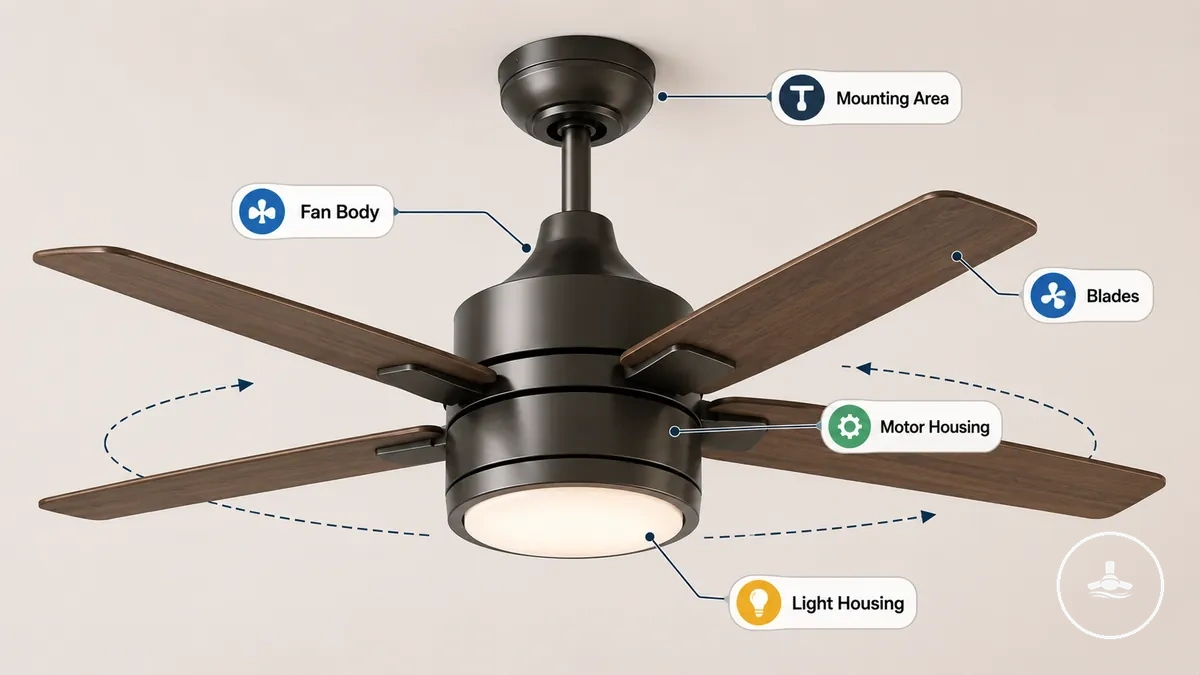

The image shows where these structural parts sit; the list explains the role of each part.
- Fan body: Connects the central fan structure with its motor, blade, mounting, and lighting components.
- Blades: Rotate around the motor axis to move air through the room.
- Motor housing: Encloses the motor and supports the blade-drive assembly.
- Mounting area: Interfaces with the fan’s ceiling-mounting hardware; the exact canopy, downrod, or flush-mount arrangement varies by model.
- Light housing: Holds or frames the lighting assembly in the position intended by the fan design.
The exact arrangement varies by model and mounting style, but the functional relationship stays consistent: the motor drives the blades, the fan structure supports them, and the light housing positions the lighting assembly.
Bulbs, LED Modules, Shades, Diffusers, and Controls
Bulbs, LED modules, shades, diffusers, and controls are the parts that produce, distribute, and operate the fan’s light. Their design affects how the light is generated, how it spreads into the room, and which control functions are available.
These components are easiest to understand by function: light source, light distribution, and control.
- Bulb or LED module: Produces the light. A bulb is replaceable when the fitting is designed for replaceable lamps; an integrated LED module is serviceable only as the model allows.
- Shade or diffuser: Covers the light source and helps soften, spread, or direct the emitted light.
- Remote, wall control, switch, or pull chain: Operates the fan light and, where supported, may provide independent switching or dimming.
Replacement and control options are model-specific. A replaceable bulb and an integrated LED module are different service formats, and dimming works only when the light source and controls are designed to support it. For brightness, dimming, and LED-specific features, see LED lights in ceiling fans.

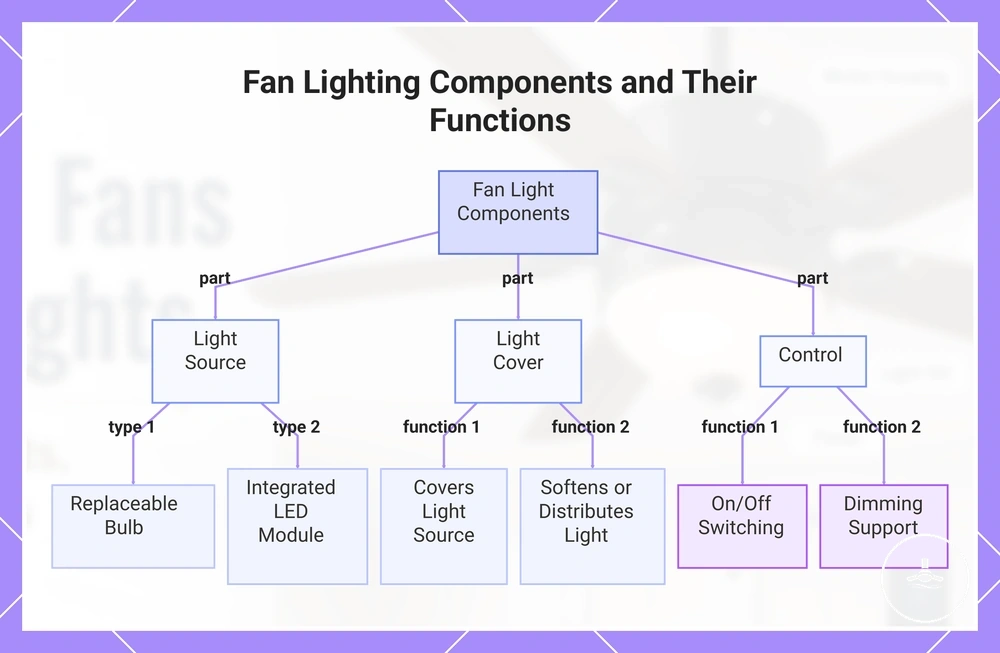

The chart reinforces the same functional relationship by grouping the light-producing, light-distributing, and control components.
Ceiling Fan Light Kits Explained
A ceiling fan light kit is a separate lighting assembly designed to attach to a ceiling fan that supports that kit. It differs from an integrated light because it is added through a compatible mounting and electrical interface rather than being built into the original fan body.
A typical light kit may include a kit body, connector, lamp holder or LED module, shade or diffuser, and mounting interface. Switching or dimming is not determined by the kit alone; it also depends on the fan’s control design and the compatible lighting configuration.
- Kit body: Supports and encloses the add-on lighting components.
- Wiring connector: Connects the kit to the electrical interface provided by a compatible fan.
- Lamp holder or LED module: Provides the light-source interface used by that kit design.
- Shade or diffuser: Covers the light source and shapes light distribution.
- Mounting interface: Secures the kit to the attachment point provided by a compatible fan.
This section defines the light-kit assembly and its parts; the following sections separate add-on versus replacement use and the compatibility conditions that must be checked.

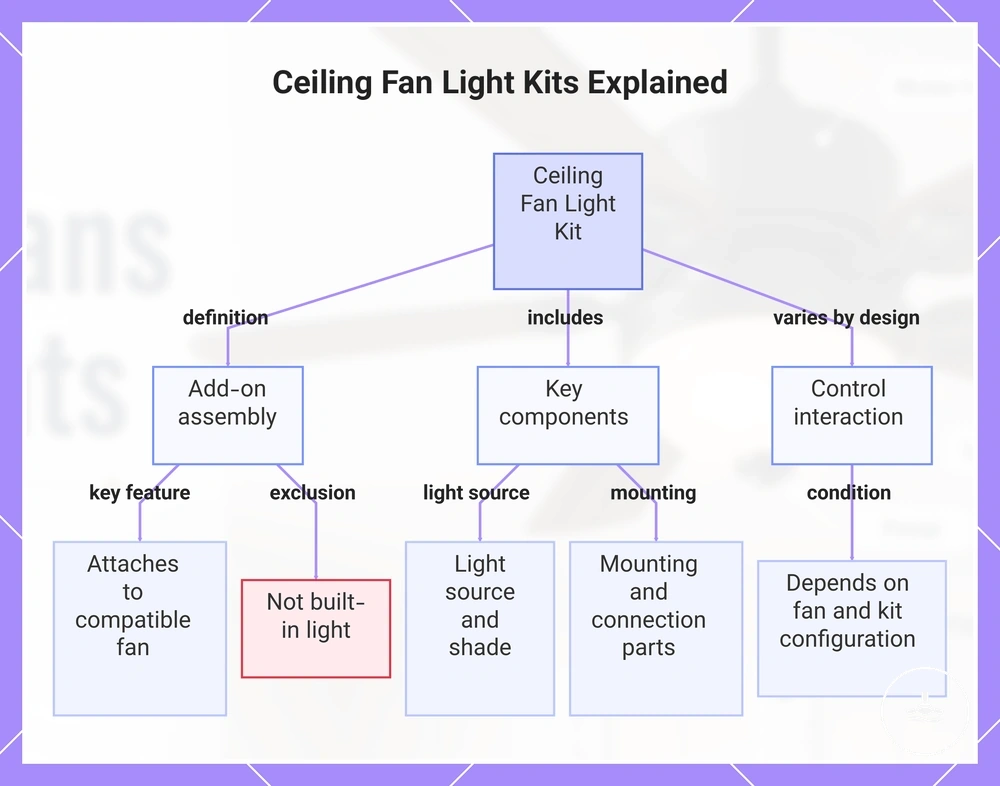

The chart summarises the light kit as an add-on assembly and shows how its components connect to a compatible fan.
Add-On Light Kits for Fans Without Lights
Add-on light kits for fans without lights are optional lighting assemblies for fans that were designed to accept a light kit. A fan that has no built-in light is not automatically light-kit compatible.
Use the following signals together to identify a light-kit-ready design:
- Light-kit-ready housing: The fan housing is designed to accept an attachable lighting assembly.
- Mounting point: A dedicated attachment point supports the light kit.
- Connector support: An internal connector may be provided for the light kit, depending on the fan design.
- Control support: Fan controls may support the added light, although available functions depend on the compatible fan.
- Shade clearance: The light kit should match the available space beneath the fan housing.
A removable bottom cap can reveal a mounting area or connector, but the cap alone is not proof of compatibility. The fan model still needs to support the relevant light kit, mounting interface, electrical connection, and control path.

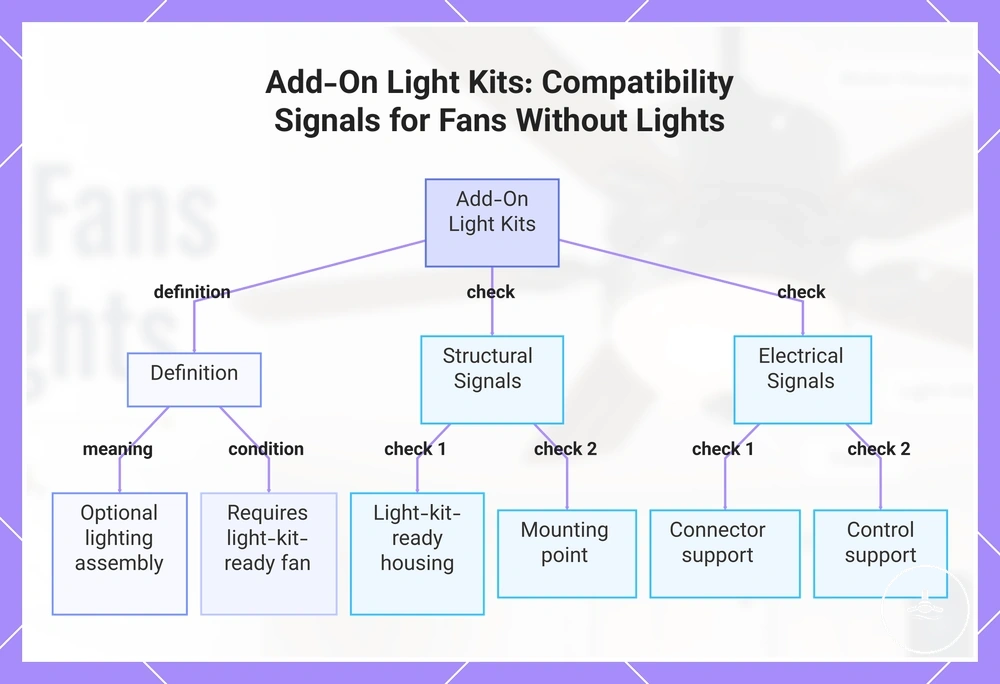

The chart groups the structural and electrical signals that distinguish a light-kit-ready fan from a fan that simply lacks an integrated light.
Replacement Light Kits for Existing Fan Lights
Replacement light kits for existing fan lights replace a supported lighting assembly on a fan that already has a light. Their purpose is replacement, not conversion: they do not make an unsupported fan light-kit-ready.
A replacement should be evaluated against the existing assembly and fan model using these conditions:
- Existing light assembly type: The replacement light kit should correspond with the original lighting assembly.
- Mounting pattern: The attachment points should match the existing light assembly.
- Connector fit: The connector should correspond with the existing fan light connection.
- Shade fit: The shade should suit the existing housing and available clearance.
- LED module or bulb format: The replacement light source depends on the original lighting assembly design.
- Control compatibility: Fan light controls may continue to operate as intended when the replacement light kit is compatible with the fan design.
Matching only the visible housing is insufficient. The replacement must preserve the required physical attachment, electrical connection, light-source format, clearance, and control compatibility for the specific fan design.

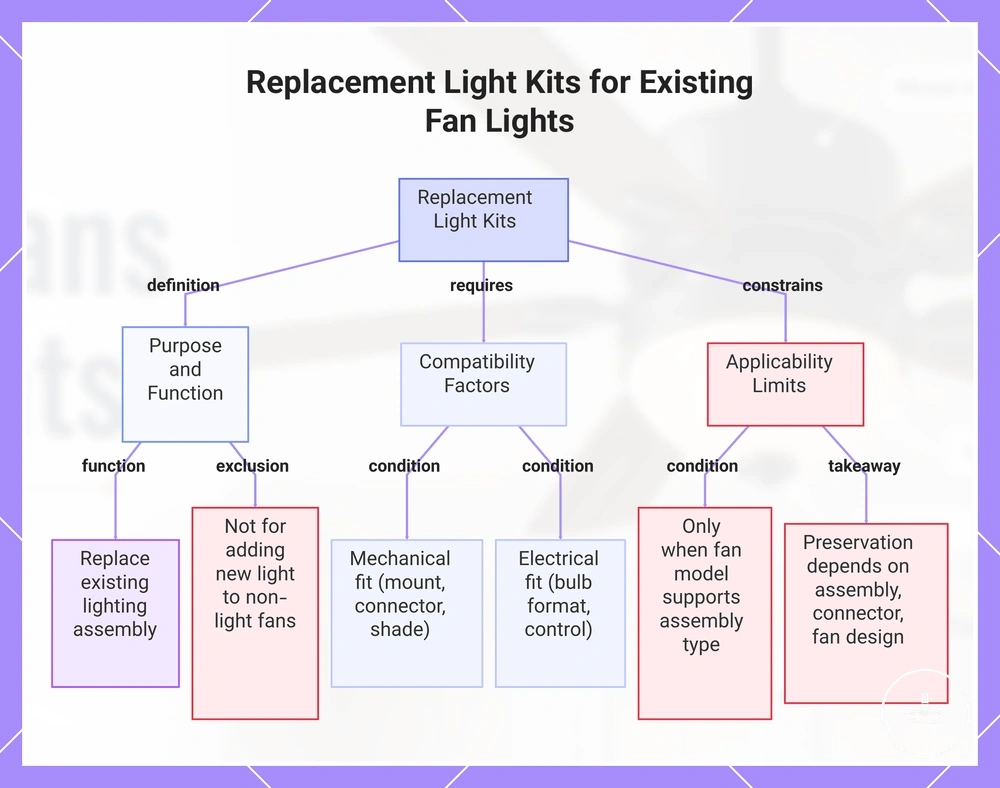

The chart summarises the replacement relationship and the main conditions that keep the replacement within the fan’s supported lighting configuration.
Integrated Lights and Light Kits as Two Lighting Forms
Integrated lights and light kits are two structural ways a ceiling fan can provide lighting. An integrated light belongs to the fan’s original lighting design, while a light kit is a separate assembly attached to a fan that is designed to accept it.
The comparison focuses on structure, serviceability, appearance, compatibility, and the practical trade-off between a built-in assembly and a supported add-on assembly.
| Feature | Integrated Light | Light Kit |
|---|---|---|
| Form | Built into the ceiling fan as part of the original lighting assembly. | Separate lighting assembly that attaches to a compatible fan. |
| Replaceable | Replaceable parts may depend on the fan design and lighting assembly. | The light kit may be replaced when the fan model supports that configuration. |
| Appearance | Often follows the original fan housing design. | Appearance may vary depending on the compatible light kit and fan design. |
| Compatibility | Compatibility is determined by the original fan design. | Compatibility depends on the mounting point, connector, and fan model. |
| Trade-off | Provides a built-in lighting assembly. | May offer more design flexibility when the ceiling fan is designed to accept a light kit. |
The important distinction is structural rather than a universal quality ranking: neither form is automatically better. For a deeper choice-oriented comparison, see integrated lights versus light kits.
Built-In Integrated Light Assemblies
Built-in integrated light assemblies are lighting systems incorporated into the ceiling fan’s original design rather than attached later as a separate light kit.
- Structure
- Built into the fan’s original lighting design rather than attached as a separate kit.
- Light source
- May use a replaceable bulb or an integrated LED module, depending on the model.
- Light distribution
- A shade or diffuser covers or spreads the light from the source.
- Control path
- Operates through the fan’s supported switch, wall-control, remote, or pull-chain arrangement.
Integrated does not mean universally non-replaceable. Serviceability depends on the model: some designs allow access to a bulb, diffuser, driver, or LED module, while others require a larger lighting module to be replaced as a unit.
Separate Light Kits Attached to Compatible Fans
Separate light kits are lighting assemblies that attach only to ceiling fans designed to accept them. Their separate construction can allow add-on or replacement flexibility, but only inside the fan’s supported light-kit system.
Compatibility is established by several fit signals working together rather than by one matching feature:
- Attachment point: The ceiling fan should provide a mounting point designed for the light kit.
- Connector availability: The fan should have a compatible connector for the lighting assembly.
- Housing match: The light kit housing should correspond with the fan design.
- Shade style: The shade should suit the light kit and the available space beneath the fan.
- Control path: Light operation depends on the compatible fan and its control configuration.
A kit can match the housing shape and still be incompatible electrically or mechanically. Treat fan-model support plus mounting, connector, clearance, and control fit as the relevant compatibility relationship.
Replaceable Parts in Ceiling Fan Light Assemblies
Replaceable parts in a ceiling fan light assembly depend on how the fan and light were designed. A replaceable bulb is usually serviced differently from an integrated LED module, and housings, receivers, pull-chain controls, and diffusers may have model-specific attachment or control requirements.
The table maps each part to the condition that permits replacement and the practical compatibility check that follows from that condition.
| Part | Replaceability Condition | Practical Caution |
|---|---|---|
| Bulb | May be replaceable when the lighting assembly uses replaceable bulbs. | Match the bulb type supported by the fan light. |
| LED module | May be replaceable only when the fan design allows module replacement. | Some integrated LED assemblies may require replacement of the complete light module. |
| Shade or diffuser | May be replaced when the housing and mounting design are compatible. | Shape and attachment style should correspond with the existing light assembly. |
| Socket | Replacement depends on the lighting assembly design and access to the part. | Socket style may vary between fan models. |
| Pull chain | May be replaceable when the control mechanism supports it. | Replacement depends on the control design. |
| Remote receiver | May be replaced when the receiver is a separate compatible component. | Control behavior depends on the fan design and compatible receiver. |
| Light-kit housing | May be replaceable when the compatible fan supports that lighting assembly. | Housing compatibility depends on the mounting point and fan design. |
The general rule is to replace a part only within the fan’s supported lighting and control design. Part-level replaceability should not be inferred from appearance alone.
Basic Compatibility Conditions for Ceiling Fan Light Kits
Ceiling fan light-kit compatibility requires several matching conditions at the same time. A kit is a viable match only when the fan supports a light kit and the mounting interface, connector, physical clearance, light-source arrangement, and controls align with that fan design.
Check the criteria separately, then treat them as a combined compatibility decision:
- Fan readiness: Confirm that the fan model is designed to accept a light kit.
- Mounting interface: Match the kit’s attachment pattern and housing arrangement to the fan.
- Electrical connector: Match the connector and supported electrical interface used by the fan’s lighting system.
- Shade and size fit: Confirm adequate clearance beneath the fan and around the light housing.
- Light-source format: Use the bulb, lamp-holder, or LED-module arrangement supported by the kit and fan design.
- Control support: Confirm that the intended switch, remote, wall control, or receiver can operate the added light as designed.
- Model-specific documentation: Use the manufacturer’s fan and light-kit information to confirm the supported pairing when available.
One matching criterion does not confirm compatibility. Model-specific documentation is the best place to confirm the supported light-kit system. For broader evaluation criteria, see features to compare before choosing.

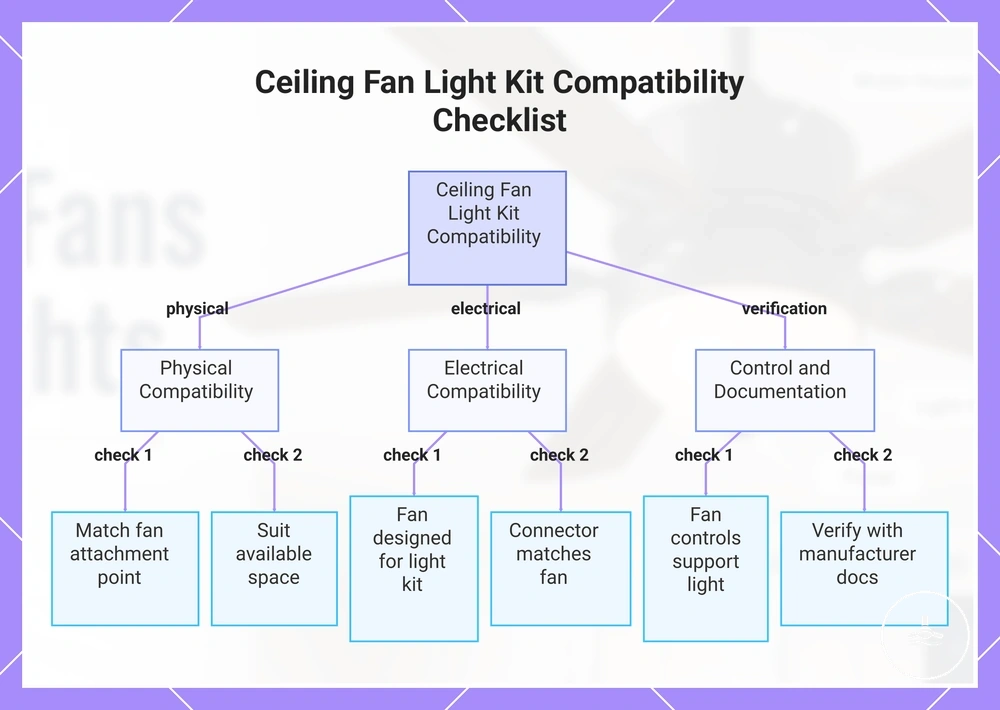

The chart groups the same checks into physical, electrical, control, and verification categories.
Fan Support for a Light Kit
Fan support is the first compatibility gate: the ceiling fan must be designed or documented to accept an attachable lighting assembly. Appearance, a removable cap, or a similar housing shape cannot establish support by themselves.
Use these signals to verify whether a fan is prepared for a light kit:
- Light-kit-ready labeling: Product information or manufacturer instructions may indicate that the fan supports a light kit.
- Removable cap: A removable bottom cap may provide access to a mounting point, but its presence alone does not confirm compatibility.
- Mounting point: A compatible fan should provide a mounting point designed for the lighting assembly.
- Connector availability: A suitable connector may be present when the fan is designed to support a light kit.
- Control support: Fan controls should support the added light when that function is available for the fan design.
- Manufacturer instructions: Model-specific documentation can help verify whether the fan is intended to accept a compatible light kit.
If the fan does not indicate light-kit support, do not treat it as a simple add-on candidate. Confirm model support before evaluating kit-level fit.
Mounting, Connector, Shade, and Control Fit
After fan-level support is confirmed, mounting, connector, shade clearance, light-source format, and control fit determine whether a particular kit matches that supported system.
Each factor can independently prevent compatibility, so check them together:
- Mounting point: The light kit should match the fan's mounting pattern so the lighting assembly can attach correctly.
- Connector: The connector should correspond with the compatible fan to allow the lighting assembly to connect.
- Shade clearance: The shade should clear the fan housing and surrounding light assembly without relying on visual similarity alone.
- Bulb or LED format: The light source should match the lighting assembly supported by the fan design.
- Remote control, wall control, and switch behavior: Control support depends on whether the fan and light kit are designed to operate together.
A kit can physically attach yet still fail the connector or control requirements. Physical fit is therefore necessary but not sufficient for a compatible ceiling fan light kit.
Wiring and Control Context for Ceiling Fans with Lights
Wiring and control context explains why two ceiling fans with lights can offer different operating behaviour even when their visible parts look similar. This is a conceptual overview of the control relationship, not installation guidance.
The table compares common control arrangements and the operating consequence each arrangement can have for the fan motor and light.
| Control Configuration | Conceptual Effect |
|---|---|
| Single switch | The ceiling fan with light may share one wall switch, depending on the installed configuration. |
| Separate fan and light controls | Fan and lighting assembly operation may be controlled independently when separate controls are available. |
| Remote receiver | A remote receiver may manage fan and light functions through compatible controls. |
| Wall control | Wall controls may support selected fan and light functions when compatible with the configuration. |
| Pull chain | A pull chain may operate the fan, the light, or both, depending on the fan design. |
| Dimming support | Dimming capability depends on the light source, controls, and overall configuration. |
| Existing wiring or control mismatch | Available fan and light functions may differ when the installed wiring or controls do not match the fan’s intended configuration. |
The practical boundary is simple: available fan and light functions depend on both the fan’s control design and the installed configuration. Detailed wiring or installation requirements should be handled as a separate, model-specific question.
